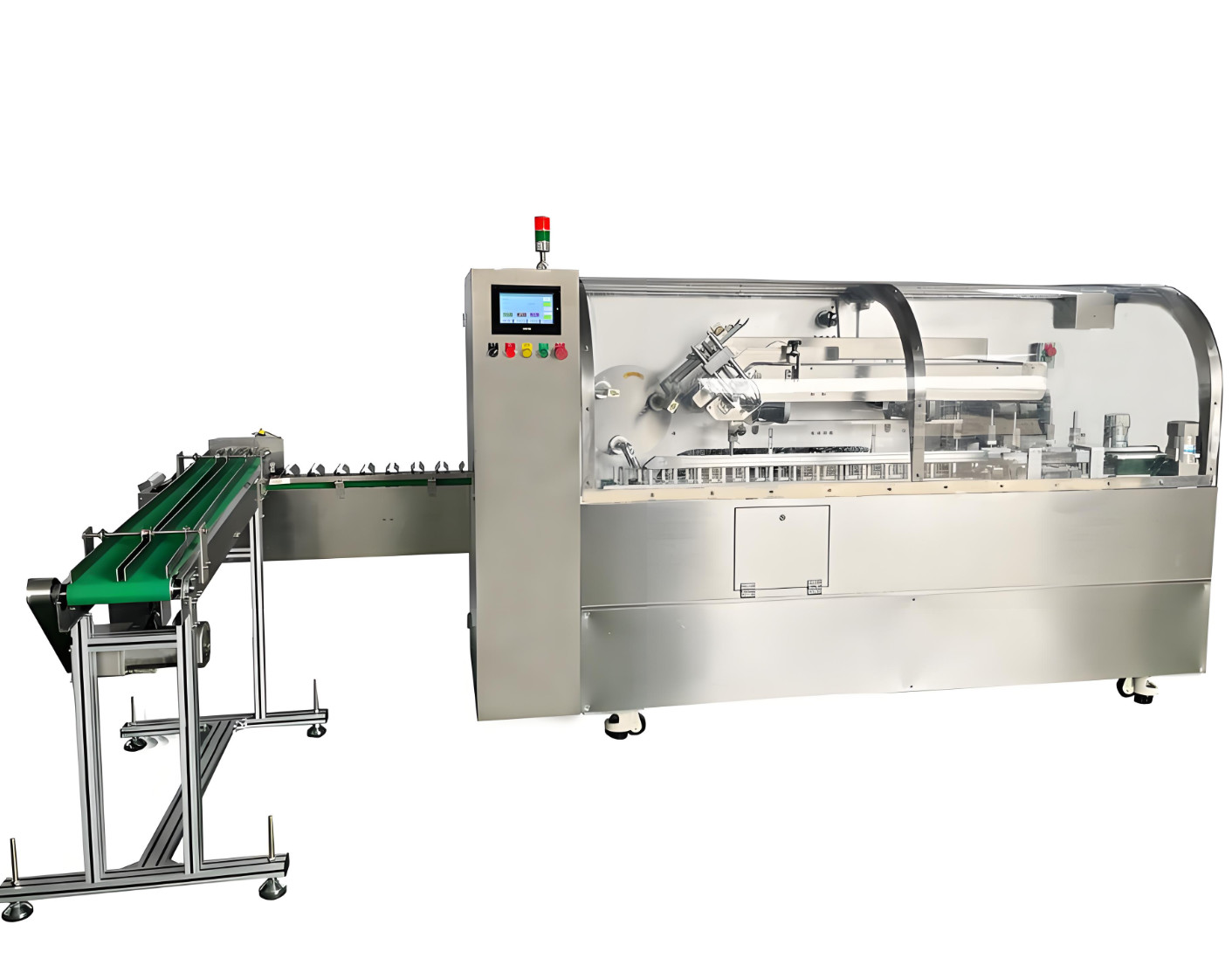

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers

Name: Continuous Full Automatic Cartoning Machine For Small BottlesAluminumplastic boardsCosmetic containers
Brand: CHIC
Price: 1 USD

Wholesale Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers from china suppliers

Brand Name : CHIC

Model Number : ZH-180

Certification : CE ISO

Place of Origin : China

MOQ : 1 piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20 pcs /month

Delivery Time : 30 working days

Packaging Details : Packing inside is plastic films and outside is fumigation wooden case.Our wooden case is very strong,it can bear long time shipping on the sea.And machine with preservative film,it can stop the salt sea water enter into the machine and make the machine cor

type : full-automatic cartoning machine

condition : new and customized as your needs

Power : 380V/50Hz/1.5kw

Carton size range : L（80-200）*W（25-90）*H（14-80）(mm)

Carton paper required : 250-350g/m2

Stable speed : 120-140cartons/min

compressed air consumption : 5-8L/min,0.6Mpa

Machine size : L3300*W1200*H1750 (mm)

Instruction paper size : L(30-230)*W(30-230)

Instruction paper material : 50-65g/m2

Contact Now

Full-automatic cartoning machine for small bottles/aluminum-plastic boards/cosmetic containers etc...

ZH-180 Full-automatic cartoning machine 120-140cartons/hour

Descriptions:

The ZH-180 high speed automatic cartoning machine and special designed tubes feeders to transport and feed trays and conveyor to connect your forward tube filling machine , to pack the tubes one by one into cartons and then insert the two end covers and glue seal them to coding date using the ink-jet date printer, then output the finished cartons .or to place trays firstly and start the robot arms to place three tubes into each tray and then fill into each cartons and insert the two covers and glue seal to coding on cartons and output.

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers

ZH-180 Full-automatic cartoning machine specifications:

No.	Name	Unit	Number or illustration	P.s.
1	Power	kw	1.5
2	Voltage	v	380V/50HZ
3	Stable speed	box/min	120-140 box/min
4	Box size	LWH mm	(80-120)(25-90)(14-80)
5	Box paper	g/m2	250-350
6	Instruction Size	L*W	(30-230)*(30-230)
7	Instruction paper	g/m2	50-65
8	Air consumption	L/min	5～8
9	Compressed air	Mpa	0.6
10	Weight	kg	2500
11	Noise	≤dB	75
12	Dimension	LWH mm	330012001750	Partial size without wire

Machine features:

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers

1. Automated Packaging Operations

2. Integrated Documentation Handling

3. Product Identification Solutions

4. Intelligent Monitoring System

5. Control Architecture

6. Production Intelligence

Continuous Full Automatic Cartoning Machine For Small Bottles/Aluminum-plastic boards/Cosmetic containers

FAQ:

Q1: What’s the MOQ of the machines?

The MOQ is 1 set.

Q2: What’s the carton material does the machine use?

3-layer or 5-layer corrugated cartons.

Q3: Is the machine Full-automatic or Semi-automatic?

There’ re both full-automatic and semi-automatic.

Q4: Which model carton sealing machine is suit for our requirement?

Please send us your carton size(carton drawing with dimension on it is rather helpful),then we can recommend the right machine for you.

Q5: Is the carton sealing machine can be connected with production line?

Yes, it can be connected with the production line or single operating.

Q6:What’s the warranty of the machine?

It’s 1 year warranty except the consuming spare parts Lifetime maintenance.

Q7: Can you provide customization service for us if we have the special requirements?

Sure, we can provide customization service for you.

Q8: What’s the added value service of your machine?

We provide free training for your operator and machine maintenance at our factory in China.Or provide you the technical video for your reference.
